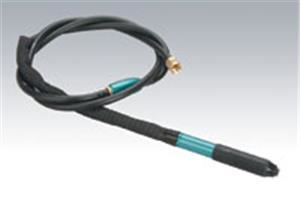

0.1 hp Straight-Line Variable Speed Pencil Grinder, 35-60,000 RPM, Rotary Vaned Air Motor, 1/8 Inch Collet
- Item Code: 52850
- Brand: Dynabrade
- Unit Size: 1
Description
Dynabrade€™s Variable Speed Pencil Grinder offers precision deburring, finishing and engraving, with easily adjustable speed to suit each application. This is an essential tool for turbine blade manufacturers, tool & die shops, machine shops, investment castings, jewelry, medical implants, composites and more!
High-Quality Air Line; 1/4" (6 mm) in diameter and 5 feet (1.5 m) in length. Over-hose Assembly; Helps direct air and excess oil away from operator - 12" (305 mm) in length. Variable Speed Flow Control; Adjust your desired speed with dial, up to 60,000 RPM. Unlike €œroll valves,€ your speed stays set when turning tool off and on. One Touch Starts Tool at Desired Speed; Handy push-button for simple on/off operation. Tool comes on at same speed as when you shut it off!
Features
Back To Top- Ergonomic Tactile Grip; Tactile, non-slip grip is insulated for comfortable use. Large Precision Bearings; Ensure longer tool life than competitive models. Spindle Lock Allows Easy Collet Tightening; With €œthru-hole€ for quick accessory change. No struggling with two wrenches! Low Collet Run-Out; Run-out of less than .003 minimizes vibration and ensures high-quality cut.
- Model accepts optional collet inserts: 1/16" (51760) and 3/32" (51674).
Tech Specs
Back To Top| Diameter Inches (mm) | 0.6 (15) |
|---|---|
| hp (W) | 0.1 (75) |
| Length Inches (mm) | 4.5 (114) |
| Air Inlet Thread | 1/4" NPT |
| Motor Free Speed (RPM) | 60,000 |
| Brand | Dynabrade |
| Exhaust Type | Rear |
| Collet Size | 1/8" |
| Hose I.D. Size Inches (mm) | 1/4" (6) |
