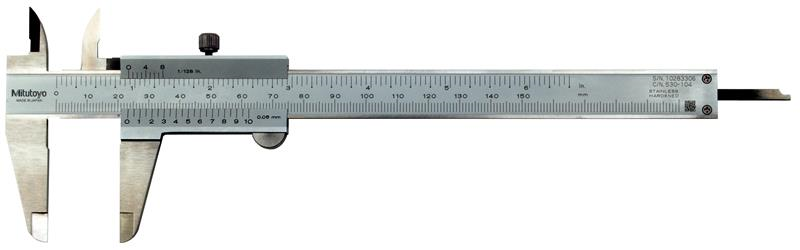

0-150mm/0-6 Inch, 0.05mm and 1/128 Inch, Vernier Caliper, Dual Scale

  • Item Code: 530-104
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Can measure OD, ID, depth, and steps.
    • Small vernier face angle provides easy reading.
    • Dual reading scales on vernier.

Tech Specs

Back To Top
Accuracy ±0.05mm
Case Material Plastic Case
Contact Point Diameter 1.9mm (Depth Rod)
Depth Rod Shape Round
Resolution or Graduation 1/128 In
Range 0 - 6 In/0 - 150mm
Individual or Set Individual
Primary Measuring Range Lower - Inch 0 In
Case Part Number 05RAB235
Primary Measuring Range Upper - Metric 150mm
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Brand Mitutoyo
Primary Measuring Range Upper - Inch 6 In
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Metric 0mm
