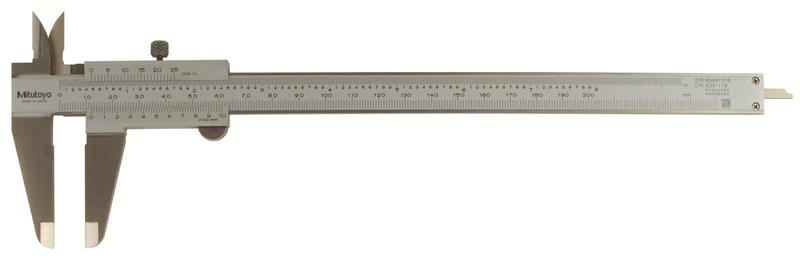

0 to 8 Inch, Includes Inside Diameter Jaws, Stainless Steel, Satin Chrome Finish Vernier Caliper

  • Item Code: 530-118
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Can measure OD, ID, depth, and steps.
    • Small vernier face angle provides easy reading.
    • Dual reading scales on vernier.

Tech Specs

Back To Top
Accuracy ±0.03mm
Case Part Number 905125
Primary Measuring Range Upper - Inch 8 In
Individual or Set Individual
Primary Measuring Range Lower - Metric 0mm
Resolution or Graduation .001 In
Brand Mitutoyo
Depth Rod Shape Rectangular
Mechanical or Digital Mechanical
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Primary (Outside Diameter) Contact Point Material Hardened Steel
Case Material Plastic Case
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Metric 200mm
Range 0 - 8 In/0 - 200mm
