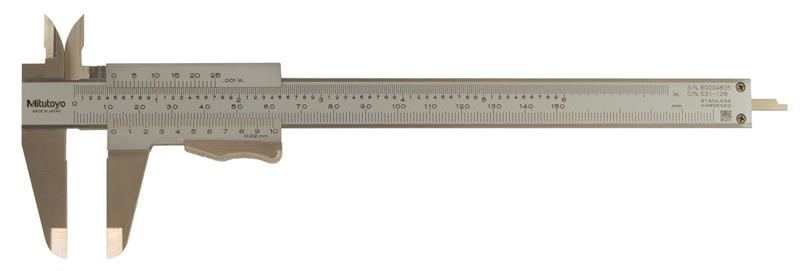

0 to 6 Inch, Includes Inside Diameter Jaws, Stainless Steel, Vernier Caliper

  • Item Code: 531-128
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The slider moves only when the spindle loaded thumb clamp is depressed.
    • Can measure OD, ID, depth, and steps.
    • Supplied with vinyl holster in fitted carton.

Tech Specs

Back To Top
Case Material Plastic Case
Case Part Number 05RAB235
Depth Rod Shape Rectangular
Primary Measuring Range Upper - Metric 150mm
Range 0 - 6 In/0 - 150mm
Accuracy ±0.03mm
Primary (Outside Diameter) Contact Point Material Hardened Steel
Individual or Set Individual
Resolution or Graduation .001 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Inch 6 In
Secondary (Inside Diameter) Contact Point Material Hardened Steel
