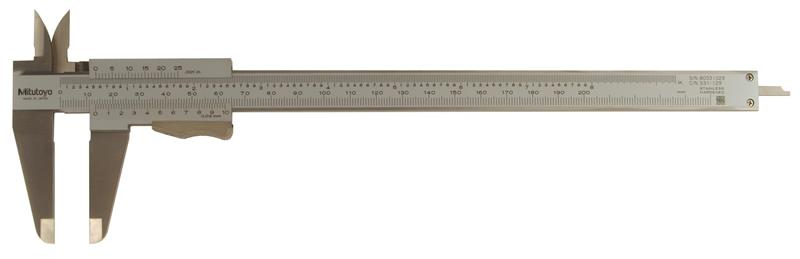

0 to 8 Inch, Includes Inside Diameter Jaws, Stainless Steel, Vernier Caliper

  • Item Code: 531-129
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The slider moves only when the spindle loaded thumb clamp is depressed.
    • Can measure OD, ID, depth, and steps.
    • Supplied with vinyl holster in fitted carton.

Tech Specs

Back To Top
Accuracy ±0.03mm
Brand Mitutoyo
Depth Rod Shape Rectangular
Primary Measuring Range Upper - Inch 8 In
Range 0 - 8 In/0 - 200mm
Individual or Set Individual
Primary Measuring Range Lower - Metric 0mm
Resolution or Graduation .001 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Upper - Metric 200mm
Case Part Number 905125
Mechanical or Digital Mechanical
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Case Material Plastic Case
Primary Measuring Range Lower - Inch 0 In
