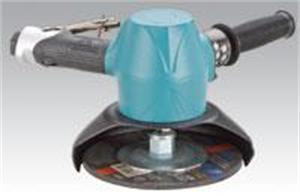

3 hp, 7,200 RPM, Gearless, Rotational Exhaust, 5/8-11 Spindle Thread, 7 Inch (178 mm) Dia. Type 27 Vertical Depressed Center Wheel Grinder

  • Item Code: 53244-DYNABRADE
  • Brand: Dynabrade
  • Unit Size: 1

Description

Features

Back To Top
    • Ideal for heavy-duty applications in foundries and shipyards. Fast stock, rust and scale removal.
    • Governor-controlled air motor maintains tool RPM under heavy load. Over-speed shut-off feature ensures maximum operator safety. Motor is gearless with less wearable parts, ensuring reduced maintenance and less down-time.
    • Insulated tool handle minimizes cold air transmission to the hand. Handle position is adjustable for operator comfort. Includes safety-lock throttle lever. For peak performance, use of optional 95870 Air Hose-1/2" (13 mm) diameter is recommended.
    • Model accepts optional Type 27 reinforced Depressed Center Wheels, 7" (178 mm) diameter. Wheel NOT included with tool. Covers more area in less time!

Tech Specs

Back To Top
Air Inlet Thread 1/2" NPT
Spindle Thread 5/8"-11 Male
hp (W) 3 (2,237)
Length Inch (mm) 9.5" (241)
Hose I.D. Size Inch (mm) 1/2" (13)
Type 27 Grinding Wheel Dia. Inch (mm) 7" (178)
Brand Dynabrade
Free Speed RPM 7,200
Exhaust Type Rotational Side Exhaust
Height Inch (mm) 7" (179)
