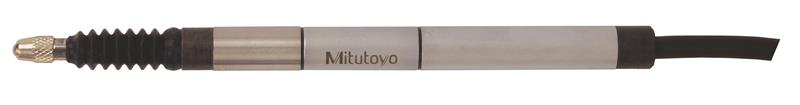

.4 Inch/10mm Linear Gage, .001mm resolution

  • Item Code: 542-222
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Extremely compact design.
    • The small photoelectric linear encoder assures high precison over the entire stroke range.
    • The ball bearings used in the spindle unit ensure supurb durability.

Tech Specs

Back To Top
Accuracy 2µm
Data Output Cable - 40 inch 902434
Data Output Cable - 80 inch 902433
Measuring Force 0.8N,0.75N,0.7N
Range 0 - .4 In/0 - 10mm
IP Rating IP54
Primary Measuring Range Lower - Metric 0mm
Stem Diameter Measurement 3/8 In
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch .4 In
Primary Measuring Range Upper - Metric 10mm
Data Output Y
Primary Measuring Range Lower - Inch 0 In
Resolution or Graduation 0.001mm
Individual or Set Individual
Mechanical or Digital Digimatic
