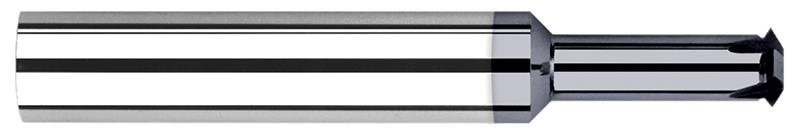

0.2400 in. Cutter Diameter x 1.0000 in. (1) Reach 4 Flute AlTiN Coated Carbide Single Form #5/16 Thread Milling Cutter

  • Item Code: 54255-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Single thread form can mill any pitch
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Tip of included angle ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish AlTiN
Included Angle 60
Neck Diameter 0.1600"
Angle per Side 30
Brand Harvey Tool
Length of Cut 0.0460"
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
Size 16-May
Number of Flutes 4
Cutter Diameter Decimal 0.2400"
Maximum Depth of Thread 1.0000" (1)
Overall Length 2.5000" (2-1/2)
