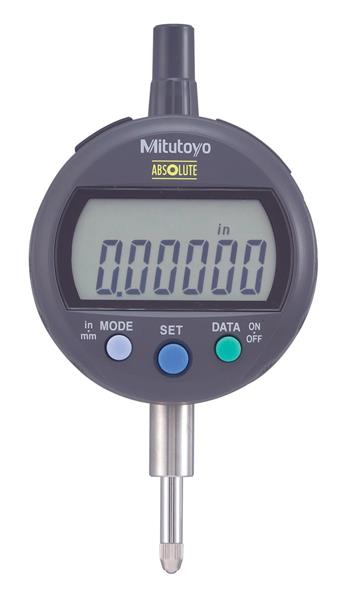

0 to 0.5 Inch Range, 0.00005 Inch Resolution, Electronic Drop Indicator

  • Item Code: 543-392
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Large, easy-to-read LCD.
    • GO/�NG judgement is performed by setting the upper and lower tolerances for max., min. and runout values.
    • Internal calculations using the simple formula of [F(x)=Ax)] are available.

Tech Specs

Back To Top
Stem Diameter Measurement 3/8 in.
Data Output Cable - 80 inch 905409
Primary Measuring Range Upper - Metric 12.7mm
Range 0 - .5 In/0 - 12.7mm
Data Output Y
Resolution or Graduation .0005 in.; .0001 in.; .00005 in.
Measuring Force =1.5N
Accuracy .0001 in.
Individual or Set Individual
IP Rating IP42
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 in.
Primary Measuring Range Lower - Metric 0mm
Brand Mitutoyo
Primary Measuring Range Upper - Inch .5 in.
Back Type Lug
Data Output Cable - 40 inch 905338
Mechanical or Digital Digimatic
