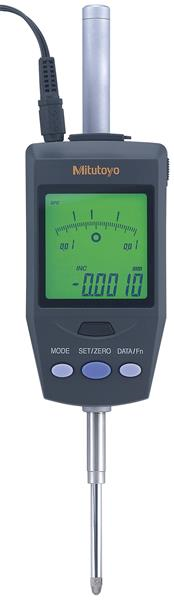

0 to 1.2 Inch Range, 0.00002; 0.00005; 0.0001; 0.0002; 0.0005 Inch Resolution, Electronic Drop Indicator

  • Item Code: 543-562A
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Excellent accuracy and functionality.
    • GO/�NG judgement is performed by setting the upper and lower tolerances for max., min. and runout values.
    • Internal calculations using the simple formula of [F(x)=Ax)] are available.

Tech Specs

Back To Top
Measuring Force =2.0N
Primary Measuring Range Upper - Inch 1.2 in.
Primary Measuring Range Upper - Metric 30.64mm
Range 0 - 1.2 In/0 - 30.4mm
Back Type Flat
Primary Measuring Range Lower - Inch 0 in.
Primary Measuring Range Lower - Metric 0mm
Stem Diameter Measurement 3/8 in.
Primary (Outside Diameter) Contact Point Material Carbide
Brand Mitutoyo
Individual or Set Individual
Mechanical or Digital Digimatic
Data Output Y
Accuracy .0015 in.
Data Output Cable - 80 inch 965014
Resolution or Graduation .00002, .00005, .0001 in.
Data Output Cable - 40 inch 936937
