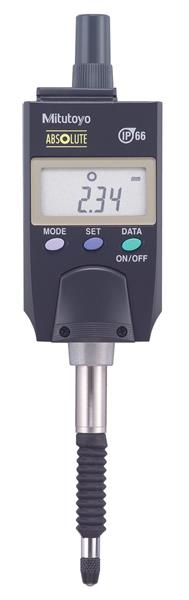

.5 Inch/12.7mm, .0005 Inch/0.01mm, ID-N IP66 ABSOLUTE Digimatic Indicator, 3/8 Inch stem, Flat Back

  • Item Code: 543-571
  • Brand: Mitutoyo
  • Unit Size: 1

Description

With SPC Data Output, ANSI

Features Tech Specs

Features

Back To Top
    • Proven ABSOLUTE sensor.
    • Slim body design is advantageous for multi-point measurements.
    • Improvement in workability with the LCD readout-rotation function.

Tech Specs

Back To Top
Accuracy .0008 in.
Data Output Cable - 40 inch 21EAA194
Data Output Cable - 80 inch 21EAA190
Primary Measuring Range Lower - Inch .00001 in. - .05 in.
Primary Measuring Range Lower - Metric 0mm
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch .5 in.
Individual or Set Individual
Stem Diameter Measurement 3/8 in.
Back Type Lug
Mechanical or Digital Digimatic
Data Output Y
IP Rating IP66
Measuring Force =2N
Primary Measuring Range Upper - Metric 12.7mm
Range 0 - .5 In/0 - 12.7mm
Resolution or Graduation .0005 in.
