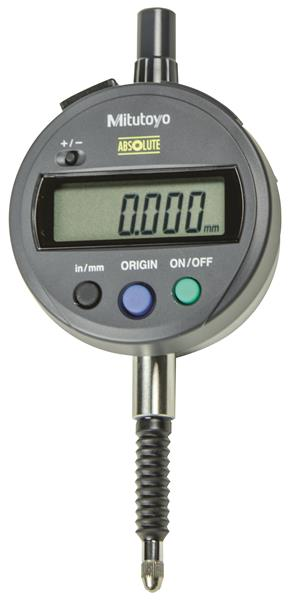

0 to 0.5 Inch Range, 0.00005 Inch Resolution, Electronic Drop Indicator

  • Item Code: 543-795
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Employing the ABSOLUTE linear encoder, the Signal ID-S always displays the spindle InAbsolute Position In from the origin at power-on.
    • After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over entire battery life.
    • Unlimited response speed eliminates over-speed errors.

Tech Specs

Back To Top
IP Rating IP53
Primary Measuring Range Upper - Inch .0001 in.
Resolution or Graduation .0015 in.
Accuracy .0001 in.
Data Output Y
Primary Measuring Range Lower - Metric 0mm
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch .0001 in.
Primary (Outside Diameter) Contact Point Material Carbide
Stem Diameter Measurement 8mm
Data Output Cable - 80 inch 905409
Range 0 - .5 In/0 - 12.7mm
Data Output Cable - 40 inch 905338
Measuring Force =2.5N
Primary Measuring Range Upper - Metric 12.7mm
Individual or Set Individual
Back Type Lug
