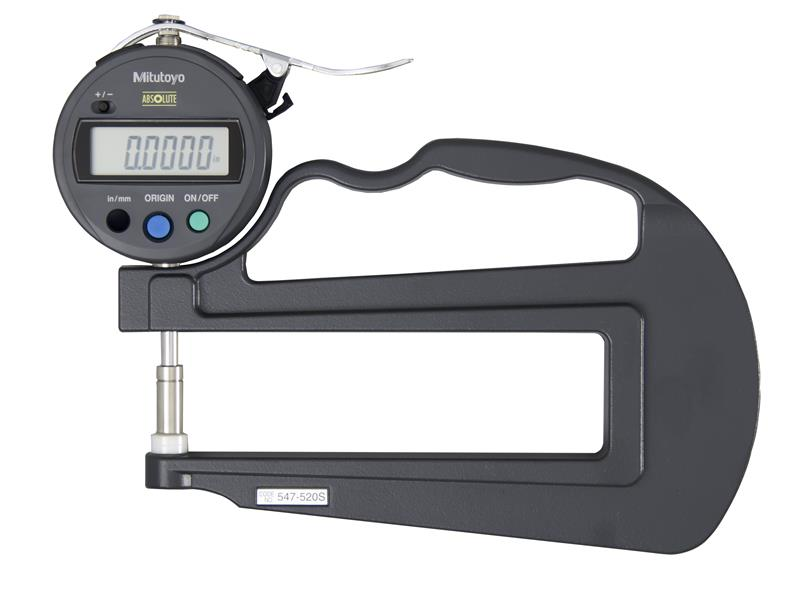

0-.47 Inch/0-12mm, .0005 Inch/0.01mm ID-S Digimatic ABSOLUTE Thickness Gage, Deep Throat

  • Item Code: 547-520S
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide range of applications with various types of measuring faces.
    • Provides error-free LCD readings as well as data output for SPC analysis.

Tech Specs

Back To Top
Individual or Set Individual
Measuring Force =1.5N
Resolution or Graduation .0005 In
Case Material Plastic Case
Data Output Cable - 40 inch 905338
Brand Mitutoyo
Data Output Y
Case Part Number 21RZA081
Data Output Cable - 80 inch 905409
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch .47 In
Accuracy ±.001 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Mechanical or Digital Digital
Range 0 - .47 In/0-12mm
