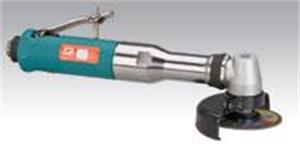

.7 hp, 18,000 RPM, Composite, 3 Inch (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool

  • Item Code: 54732-DYNABRADE
  • Brand: Dynabrade
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Model accepts optional 3" or 4" (76 mm or 102 mm) diameter Type 41 reinforced Cut-Off Wheels, with 3/8" (9.5 mm) center hole.
    • Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.
    • Adjustable wheel guard provides maximum operator protection.
    • Models include aluminum right angle housing.
    • Extension design allows longer reach on work-piece, and two-hand control for added comfort.

Tech Specs

Back To Top
Exhaust Type Rear
Air Inlet Thread 1/4" NPT
Hose I.D. Size Inch (mm) 3/8" (10)
Length Inch (mm) 11 3/8" (288)
Spindle Thread 3/8"-24 Male
hp (W) 0.7 (522)
Height Inch (mm) 3-1/8" (79)
Free Speed RPM 18,000
Type 41 Reinforced Cut-Off Wheel Dia. Inch (mm) 3" (76)
Brand Dynabrade
