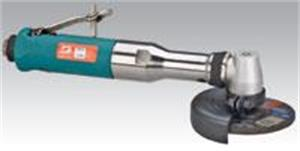

.7 hp, 12,000 RPM, Composite, 4 Inch (102 mm) Dia. Extended Right Angle Type 27 Depressed Center Wheel Grinder
- Item Code: 54773
- Brand: Dynabrade
- Unit Size: 1
Description
Model accepts optional 4" (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8" (10 mm) center hole; wheel width of 1/8" to 1/4" (3 mm to 6 mm).
Features
Back To Top- Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.
- Adjustable wheel guard provides maximum operator protection.
- Models include aluminum right angle housing.
- Extension design allows longer reach on work-piece, and two-hand control for added comfort.
Tech Specs
Back To Top| Brand | Dynabrade |
|---|---|
| Height Inch (mm) | 3-1/16" (78) |
| hp (W) | 0.7 (522) |
| Tool Thread | 3/8"-24 Male |
| Exhaust Type | Rear |
| Hose I.D. Size Inch (mm) | 3/8" (10) |
| Free Speed RPM | 12,000 |
| Length Inch (mm) | 11 3/8" (288) |
| Air Inlet Thread | 1/4" NPT |
| Type 27 Grinding Wheel Dia. Inch (mm) | 4" (102) |
