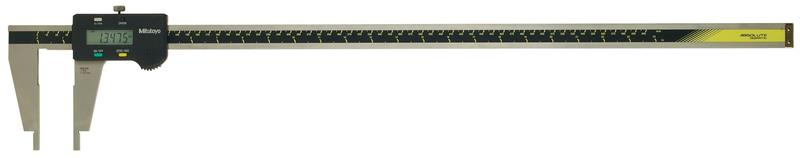

0-24 In/0-600mm, .0005 Inch(0.01mm), ABSOLUTE Digimatic Nib Jaw Caliper, With SPC Data Output, No Depth Bar

  • Item Code: 550-225-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The rounded faces of the jaws are ideal for accurate ID measurement.
    • SPC output.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Accuracy .002 In
Primary Measuring Range Lower - Inch 0 In (.5 In)
Primary Measuring Range Lower - Metric 0mm (20mm)
Primary Measuring Range Upper - Metric 600mm
Data Output Y
Primary Measuring Range Upper - Inch 24 In
Brand Mitutoyo
Data Output Cable - 80 inch 959150
Range 0 - 24 In/0 - 600mm
Primary (Outside Diameter) Contact Point Material Hardened Steel
Resolution or Graduation .0005 In
Mechanical or Digital Digimatic
Data Output Cable - 40 inch 959149
Individual or Set Individual
Secondary (Inside Diameter) Contact Point Material Hardened Steel
