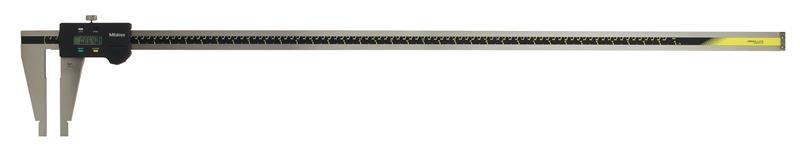

0 to 40 Inch Range, 0.0005 Inch Resolution, Electronic Caliper

  • Item Code: 550-227-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The rounded faces of the jaws are ideal for accurate ID measurement.
    • SPC output.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Accuracy .003 In
Primary Measuring Range Upper - Inch 40 In
Range 0 - 40 In/0 - 1000mm
Brand Mitutoyo
Data Output Cable - 80 inch 959150
Mechanical or Digital Digimatic
Primary Measuring Range Upper - Metric 1000mm
Primary Measuring Range Lower - Metric 0mm (20mm)
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Inch 0 In (1 In)
Data Output Y
Primary (Outside Diameter) Contact Point Material Hardened Steel
Data Output Cable - 40 inch 959149
Individual or Set Individual
Resolution or Graduation .0005 In
