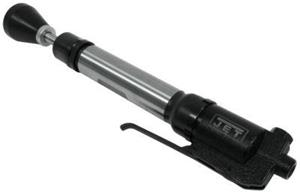

JCT-1602, Benchtop Sand Rammer

  • Item Code: 550602
  • Brand: Jet
  • Unit Size: 1

Description

JET® Sand Rammers are available in bench and floor models. The bench models deliver fast, powerful blows for ramming small, medium and large forms. The floor models deliver maximum power with slow, powerful blows that efficiently and quickly compact all types of backfill. Each model is ergonomically designed providing greater ease of handling with reduced operator fatigue

Features Tech Specs

Features

Back To Top
    • Front end seal protects the piston from excessive dirt and debris extending tool life
    • Fast powerful blows for compacting small, medium and large sand molds
    • Heavy-Duty, industry proven valve design
    • All Steel cylinder housing for increased durability
    • Performance @ 90 PSI. Air Inlet NPT 3/8". Min Hose Size 3/8"
    • Butt Type: Rubber

Tech Specs

Back To Top
Bore Size (In.) 1
Butt Diameter (In.) 2-9/16
Gross Weight (lbs.) 15
Model Number JCT-1602
Noise Level (dB) (A) 104.7
Overall Length (In.) 19-11/16
Piston Stroke (In.) 3-15/16
UPC 731325506358
Vibration Value (m/s²) 32.49
Weight (Lbs.) 13.23
Air Pressure (PSI) 90
Air Hose (ID/In.) 3/8
Country of Origin TW
Taper (Deg.) 1.39
Blows Per Minute (BPM) 800
Air Consumption (CFM) 24
Air Inlet (NPT/In.) 3/8
Brand Jet
