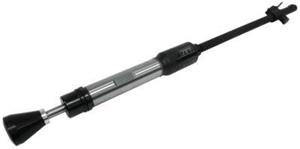

JCT-1605, Floor Sand Rammer / Backfill Tamper

  • Item Code: 550605
  • Brand: Jet
  • Unit Size: 1

Description

JET® Sand Rammers are available in bench and floor models. The bench models deliver fast, powerful blows for ramming small, medium and large forms. The floor models deliver maximum power with slow, powerful blows that efficiently and quickly compact all types of backfill. Each model is ergonomically designed providing greater ease of handling with reduced operator fatigue

Features Tech Specs

Features

Back To Top
    • Front end seal protect the piston from excessive dirt and debris extending tool life
    • Maximum power with slow, powerful blows for compacting large sand molds
    • Highly efficient way to quickly compact all types of backfill and sand
    • All Steel cylinder housing for increased durability
    • Heavy-Duty, industry proven valve design
    • Performance @ 90 PSI. Air Inlet NPT 1/2". Min Hose Size 1/2"
    • Butt Type: Rubber

Tech Specs

Back To Top
Air Consumption (CFM) 30
Air Inlet (NPT/In.) 1/2
Blows Per Minute (BPM) 700
Bore Size (In.) 1-1/4
Gross Weight (lbs.) 23.5
Model Number JCT-1605
Noise Level (dB) (A) 107.4
Overall Length (In.) 42-1/2
Piston Stroke (In.) 4-59/64
Taper (Deg.) 1.55
UPC 731325506563
Vibration Value (m/s²) 55.05
Weight (Lbs.) 21.58
Brand Jet
Butt Diameter (In.) 2-9/16
Air Hose (ID/In.) 1/2
Country of Origin TW
Air Pressure (PSI) 90
