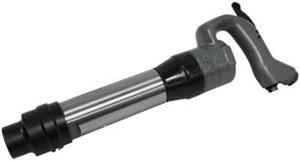

4 Inch Stroke, JCT-3645, Round Shank, Open Handle Chipping Hammer

  • Item Code: 550645
  • Brand: Jet
  • Unit Size: 1

Description

JET® Chipping hammers are available in two heavy-duty designs with multiple capabilities. The Four Bolt D handle model is designed for extra strength and provides better grip. The Saw Tooth handle model is engineered to dissipate the impact energy more efficiently. Each type has the option of round or hex shaped bushing shanks. Each model can accommodate standard oval collared chisels and retainers, making these heavy-duty Chipping Hammers a staple on any construction site

Features Tech Specs

Features

Back To Top
    • Heat treated cylinder and piston for added durability
    • Open style forged handle is engineered to dissapate the impact energy more efficiently reducing user fatigue and increasing safety
    • Heavy-Duty, industry proven valve design
    • Comes with standard type retainer
    • Performace @ 90 PSI. Air Inlet NPT 3/8". Min Hose Size 1/2"

Tech Specs

Back To Top
Gross Weight (lbs.) 20
Model Number JCT-3645
Noise Level (dB) (A) 97.5
Overall Length (In.) 16-5/8
Shank Bushing Style Hex
UPC 731325506518
Piston Stroke (In.) 4
Bore Size (In.) 1-1/8
Vibration Value (m/s²) 23.5
Air Pressure (PSI) 90
Weight (Lbs.) 18
Country of Origin TW
Min. Air Hose (ID/In.) 1/2
Air Consumption (CFM) 9
Blows Per Minute (BPM) 1,400
Air Inlet (NPT/In.) 3/8
Brand Jet
Energy Per Blow @ 90 PSI (Ft.) (Lb.) 22
Shank Bushing Size (In.) 0.580
