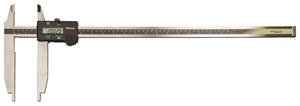

0-20 Inch/0-500mm, .0005 Inch/0.01mm, ABSOLUTE Digimatic Nib and Standard Jaw Caliper, With SPC Data Output, No Depth Bar

  • Item Code: 551-224-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The rounded faces of the jaws are ideal for accurate ID measurement.
    • Parallax-free vernier scale type is available for esy and positive measurement.

Tech Specs

Back To Top
Accuracy ±.0025 In
Case Part Number 144358
Range 0 - 20 In/0 - 500mm
Case Material Wooden Case
Data Output Cable - 80 inch 05CZA625
IP Rating IP67
Primary Measuring Range Lower - Metric 0mm (20mm)
Data Output Y
Data Output Cable - 40 inch 05CZA624
Primary Measuring Range Lower - Inch 0 In (.5 In)
Individual or Set Individual
Primary Measuring Range Upper - Metric 500mm
Resolution or Graduation .0005 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary Measuring Range Upper - Inch 20 In
