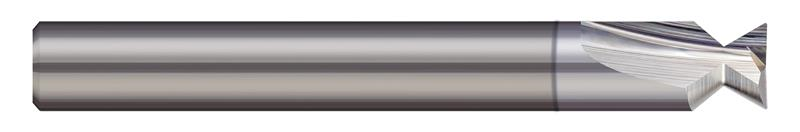

0.0840 in. Cutter Diameter x 0.0150 in. (1/64) Radius x 48 Deg. Included 2 Flute TiB2 Coated Carbide Corner Radius Dovetail Cutter With Drop Hole Allowance

  • Item Code: 56307-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to the Standards Suggested by the O-Ring Division of Parker Hannifin Corporation (ORD 5700/USA, ORD 5700)
    • Designed for Milling Full Dovetail Grooves with Drop Hole Allowance
    • Undersized Cutter Design Allows Climb Milling Both Faces of Groove for Improved Finish
    • Mills Both Top and Bottom Radii
    • 24 degree per side, 48 degree included
    • 2 Straight Flutes
    • Center Cutting
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 24
Number of Flutes 2
Overall Length 1.5000" (1-1/2)
Decimal Cutting Diameter 0.0840"
Neck Radius 0.0050"
Coating/Finish TiB2
Brand Harvey Tool
Included Angle 48
Neck Diameter 0.0560"
Radius Center 0.0500"
O Ring X Section 0.0700"
Radius Fractional 1/64"
Material Solid Carbide
Radius Decimal 0.0150"
Shank Diameter 0.1250" (1/8)
