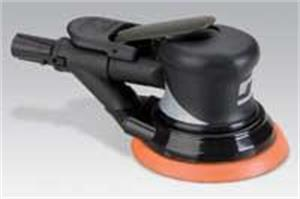

.28 hp, 12,000 RPM, 3/32 Inch (2 mm) Dia. Orbit, Rear Exhaust, 5 Inch (127 mm) Dia. Self-Generated Vacuum Dynorbital Supreme Random Orbital Sander

  • Item Code: 56853
  • Brand: Dynabrade
  • Unit Size: 1

Description

Self-Generated Vacuum Dynorbital Supreme includes low profile, premium urethane weight-mated sanding pad. Ready for connection to optional portable self-contained dust collection system. 3/32" (2.5 mm) diameter orbit.

Dynorbital Supreme models run at 12,000 RPM. Rotor utilizes five blades and produces more useable power. Composite rotor is stronger and has better lubricating qualities, enabling blades to last longer.

Features Tech Specs

Features

Back To Top
    • Composite base has integrated rubber over-mold creating a non-slip feel, as well as insulating from cold. The air motor is suspended by vibration-absorbing rubber rings (Patent No. 5,319,888) to minimize vibration.
    • Triple-sealed front double row balancer bearing (Patent No. 4,854,085) is guarded from sanding residue for long life and lower maintenance; easy replacement using 57098 Repair Kit.
    • Anti-clog design (Patent No. 5,319,888) enhances the vacuum pick-up on self-generated models. Dust particles are directed away from the air motor (reducing contamination) following a smoother, easier path of extraction. Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!

Tech Specs

Back To Top
Height Inch (mm) 3-5/8" (92)
hp (W) 0.28 (209)
Length Inch (mm) 8-1/2" (216)
Tool Spindle Thread 5/16"-24 Female
Brand Dynabrade
Orbit Dia. Inch (mm) 3/32" (2.5)
Backing Pad Diameter Inch (mm) 5" (127)
Exhaust Type Rear
Free Speed RPM 12,000
Hose I.D. Size Inch (mm) 1/4" (6)
