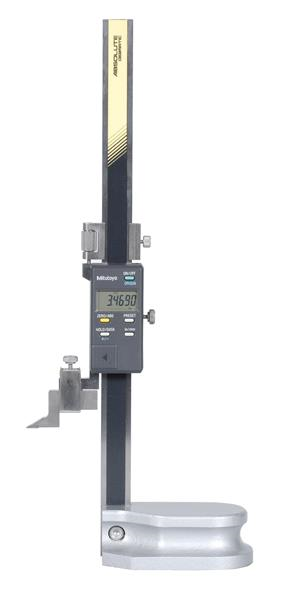

8 Inch Range, 0.0005 Inch Resolution, Electronic Height Gage

  • Item Code: 570-244
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Fine-adjustment carriage to feed the slider finely.
    • Carbide-tipped scriber is provided.
    • Built in ABSOLUTE linear encoder.

Tech Specs

Back To Top
Data Output Y
Primary Measuring Range Lower - Metric 0mm
Data Output Cable - 80 inch 905409
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 8 In
Data Output Cable - 40 inch 905338
Accuracy ±.001 In
Brand Mitutoyo
Primary Measuring Range Upper - Metric 200mm
Individual or Set Individual
Resolution or Graduation .0005 In
Primary (Outside Diameter) Contact Point Material Carbide
Range 0 - 8 In/0 - 200mm
