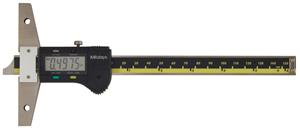

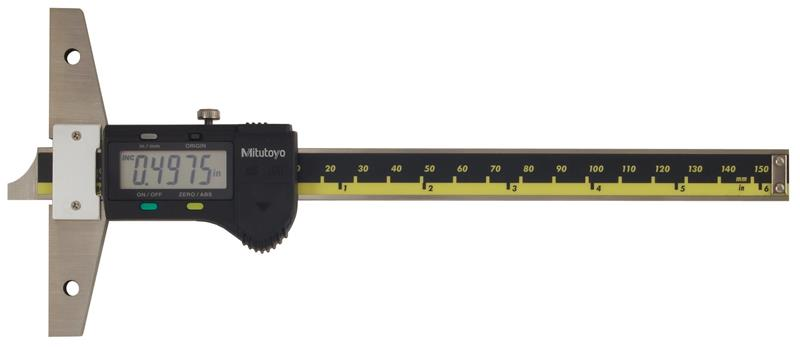

0 to 6 Inch, Stainless Steel, Electronic Depth Gage

  • Item Code: 571-211-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Base and measuring faces are hardened and micro-lapped.
    • Optional wider extension base available.
    • SPC data output.

Tech Specs

Back To Top
Case Part Number 05RZA181
Width .236 In (Base)
Primary Measuring Range Lower - Metric 0mm
Brand Mitutoyo
Accuracy ±.001 In
Data Output Cable - 40 inch 05CZA624
Range 0 - 6 In/0 - 150mm
Individual or Set Individual
Mechanical or Digital Digimatic
Data Output Cable - 80 inch 05CZA625
Length Measurement 3.937 In (Base)
Primary Measuring Range Upper - Inch 6 In
Resolution or Graduation .0005 In
Primary Measuring Range Upper - Metric 150mm
Case Material Vinyl Sleeve
Data Output Y
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Inch 0 In
