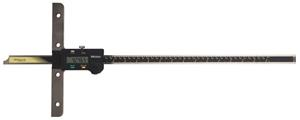

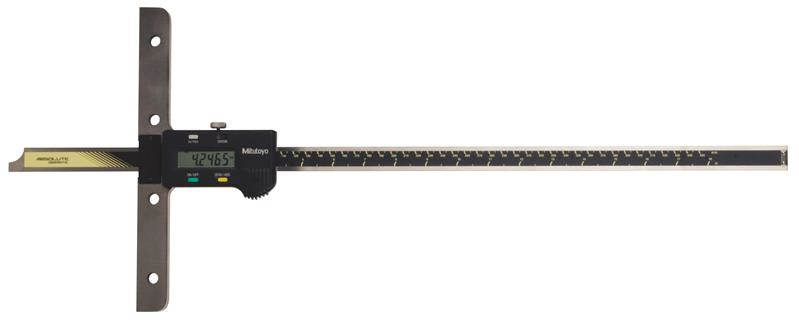

0 to 18 Inch, Stainless Steel, Electronic Depth Gage

  • Item Code: 571-214-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Base and measuring faces are hardened and micro-lapped.
    • Optional wider extension base available.
    • SPC data output.

Tech Specs

Back To Top
Length Measurement 9.843 In (Base)
Width .396 In(Base)
Accuracy ±.002 In
Data Output Cable - 80 inch 05CZA625
Individual or Set Individual
Primary Measuring Range Upper - Inch 18 In
Primary Measuring Range Upper - Metric 450mm
Case Material Leather Sleeve
Brand Mitutoyo
Mechanical or Digital Digimatic
Case Part Number 140057
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Lower - Metric 0mm
Data Output Y
Primary (Outside Diameter) Contact Point Material Hardened Steel
Data Output Cable - 40 inch 05CZA624
Range 0 - 18 In/0 - 450mm
Resolution or Graduation .0005 In
