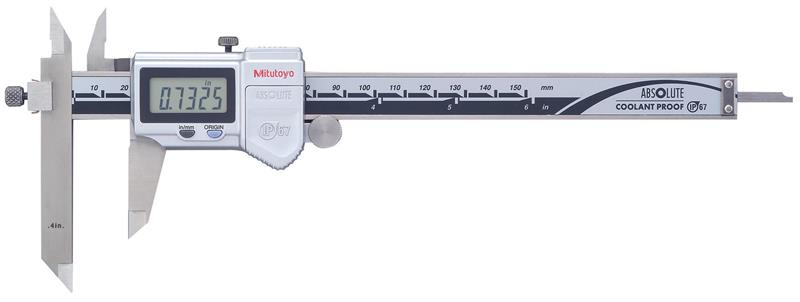

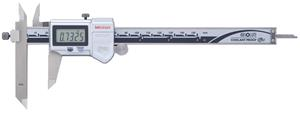

0 to 6 Inch Range, 0.0005 Inch Resolution, IP67 Electronic Caliper

  • Item Code: 573-701
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Main scale jaw can slide up and down to facilitate measurement of stepped sections.
    • With depth bar.
    • With SPC data output.

Tech Specs

Back To Top
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Case Part Number 05RAB350
Data Output Cable - 80 inch 05CZA625
Individual or Set Individual
Primary (Outside Diameter) Contact Point Material Hardened Steel
Resolution or Graduation .0005 In
IP Rating IP67
Case Material Plastic Case
Primary Measuring Range Upper - Metric 150mm
Range 0 - 6 In/0 - 150mm
Mechanical or Digital Digimatic
Primary Measuring Range Upper - Inch 6 In
Primary Measuring Range Lower - Metric 0mm
Data Output Y
Primary Measuring Range Lower - Inch 0 In
Accuracy ±.001 In
Brand Mitutoyo
Data Output Cable - 40 inch 05CZA624
Depth Rod Shape Rectangular
