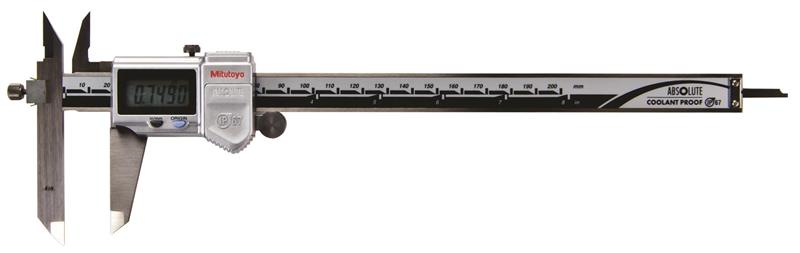

0 to 8 Inch Range, 0.0005 Inch Resolution, IP67 Electronic Caliper

  • Item Code: 573-702
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Main scale jaw can slide up and down to facilitate measurement of stepped sections.
    • With depth bar.
    • With SPC data output.

Tech Specs

Back To Top
Data Output Y
Data Output Cable - 40 inch 05CZA624
Data Output Cable - 80 inch 05CZA625
Primary (Outside Diameter) Contact Point Material Hardened Steel
Resolution or Graduation .0005 In
Case Part Number 05RAB350
Individual or Set Individual
IP Rating IP67
Accuracy ±.001 In
Case Material Plastic Case
Depth Rod Shape Rectangular
Range 0 - 8 In/0 - 200mm
Primary Measuring Range Lower - Metric 0mm
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Metric 200mm
Primary Measuring Range Upper - Inch 8 In
Secondary (Inside Diameter) Contact Point Material Hardened Steel
