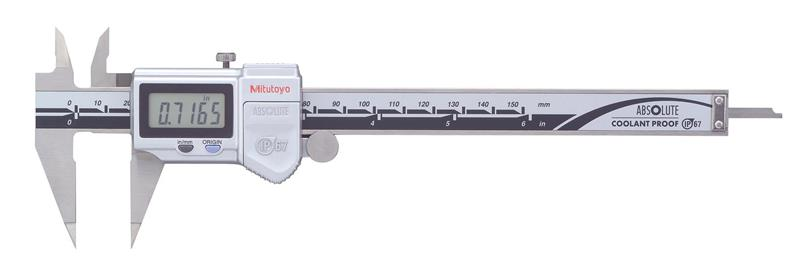

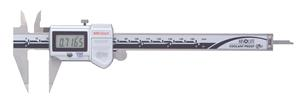

0-6 Inch(150mm), .0005 Inch(0.01mm), IP67 ABSOLUTE Digimatic Point Caliper, With SPC Data Output

  • Item Code: 573-721
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Narrow tip jaws fit into very small grooves and tracks, making many previously difficult outside measuremtns far easier to obtain.
    • With depth bar.
    • With SPC data output.

Tech Specs

Back To Top
Range 0 - 6 In/0 - 150mm
Primary (Outside Diameter) Contact Point Material Hardened Steel
Resolution or Graduation .0005 In
Brand Mitutoyo
Individual or Set Individual
Mechanical or Digital Digimatic
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Accuracy ±.001 In
Depth Rod Shape Rectangular
Primary Measuring Range Lower - Metric 0mm
Data Output Cable - 40 inch 05CZA624
Data Output Cable - 80 inch 05CZA625
IP Rating IP67
Primary Measuring Range Upper - Inch 6 In
Case Part Number 05RAB235
Data Output Y
Case Material Plastic Case
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Metric 150mm
