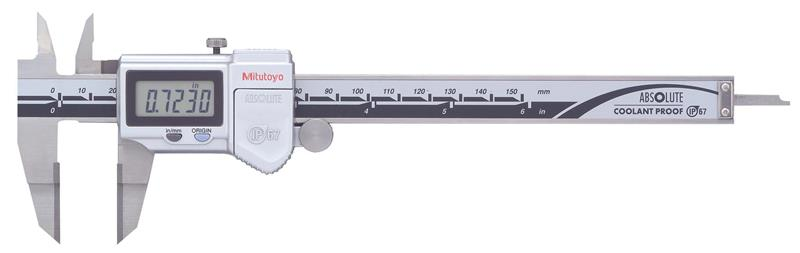

0 to 6 Inch Range, 0.0005 Inch Resolution, IP67 Electronic Caliper

  • Item Code: 573-734
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The thin blade type jaws fit into very small grooves and making previously difficult outside measurements far easier to obtain.
    • The OD measuring faces are carbide-tipped.
    • With depth bar.

Tech Specs

Back To Top
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 6 In
Data Output Cable - 80 inch 05CZA625
Resolution or Graduation .0005 In
Primary Measuring Range Lower - Metric 0mm
Data Output Y
Data Output Cable - 40 inch 05CZA624
Accuracy ±.001 In
Case Material Plastic Case
Case Part Number 05RAB235
Depth Rod Shape Rectangular
Primary Measuring Range Upper - Metric 150mm
Mechanical or Digital Digimatic
Individual or Set Individual
IP Rating IP67
Range 0 - 6 In/0 - 150mm
Secondary (Inside Diameter) Contact Point Material Hardened Steel
