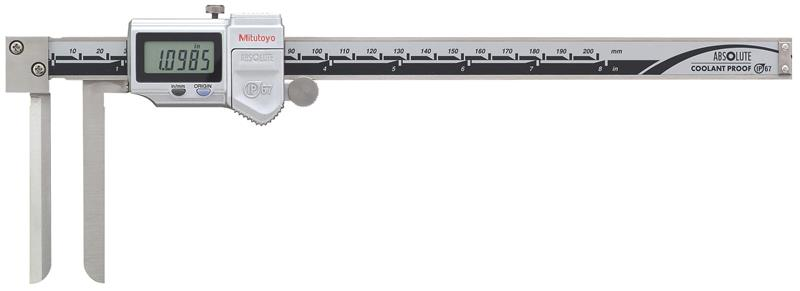

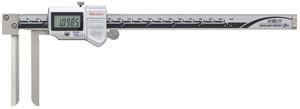

0.4 to 8 Inch Range, 0.0005 Inch Resolution, IP67 Electronic Caliper

  • Item Code: 573-742
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Specially designed for inside measurments in hard-to-reach places.
    • With SPC data output.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Case Part Number 905806
IP Rating IP67
Primary Measuring Range Lower - Inch .4 In
Primary Measuring Range Lower - Metric 10mm
Range .4 In - 8 In/10mm - 200mm
Brand Mitutoyo
Individual or Set Individual
Mechanical or Digital Digimatic
Primary Measuring Range Upper - Inch 8 In
Primary Measuring Range Upper - Metric 200mm
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Case Material Plastic Case
Data Output Y
Primary (Outside Diameter) Contact Point Material Hardened Steel
Accuracy ±.002 In
Data Output Cable - 40 inch 05CZA624
Data Output Cable - 80 inch 05CZA625
Resolution or Graduation .0005 In
