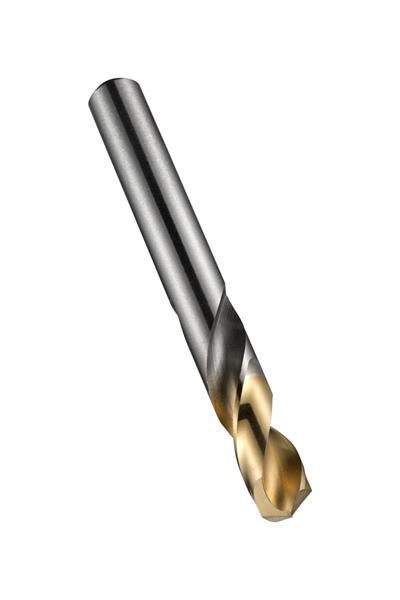

9.7 mm (0.3819) HSS TiN Finish Tip 135 Deg. Split Point Screw Machine Drill

  • Item Code: 5966939
  • Brand: Dormer
  • Unit Size: 1

Description

A022 stub drills are very versatile and are suitable for a wide variety of hand held and machine applications. They are manufactured from premium High Speed Steel and can be used for drilling a number of different materials including steels, stainless steels and aluminium. With a titanium nitride coating, you get better performance when drilling harder materials and a longer tool life. The specially designed 135 degree split point is a great aid to self-centering when drilling by hand ? so no more wandering all over the surface of the workpiece ? and you also get a more accurate hole with a better quality of finish. *Note: split point and TiN coated tip not available below 2mm.

ORDER IN MULTIPLES of 10

Tech Specs

Back To Top
Decimal Size 0.3819"
Material High Speed Steel
Flute Type Standard Spiral
Point Angle 135 Deg.
Cutting Direction Right
Brand Dormer
Metric Size 9.70 mm
Overall Length Inches 3.5039"
Overall Length Metric 89 mm
Shank Style Cylindrical shank
Coating/Finish Bright/TiN
