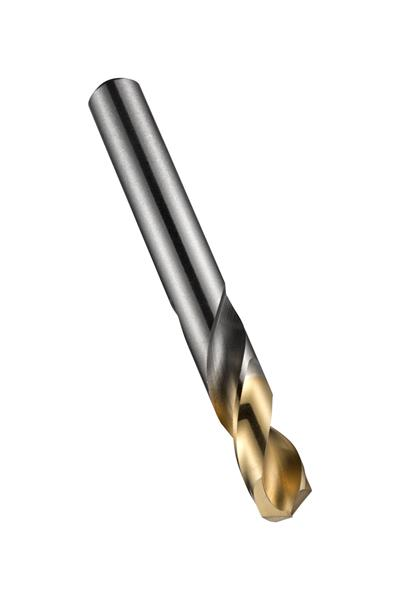

1/4 in. (0.25) HSS TiN Finish Tip 135 Deg. Split Point Screw Machine Drill

  • Item Code: 5967188
  • Brand: Dormer
  • Unit Size: 1

Description

A022 stub drills are very versatile and are suitable for a wide variety of hand held and machine applications. They are manufactured from premium High Speed Steel and can be used for drilling a number of different materials including steels, stainless steels and aluminium. With a titanium nitride coating, you get better performance when drilling harder materials and a longer tool life. The specially designed 135 degree split point is a great aid to self-centering when drilling by hand ? so no more wandering all over the surface of the workpiece ? and you also get a more accurate hole with a better quality of finish. *Note: split point and TiN coated tip not available below 2mm.

ORDER IN MULTIPLES of 10

Tech Specs

Back To Top
Brand Dormer
Coating/Finish Bright/TiN
Overall Length Inches 2.5591"
Decimal Size 0.2500"
Flute Type Standard Spiral
Overall Length Metric 65 mm
Metric Size 6.35 mm
Shank Style Cylindrical shank
Cutting Direction Right
Fractional Diameter 1/4"
Material High Speed Steel
Point Angle 135 Deg.
