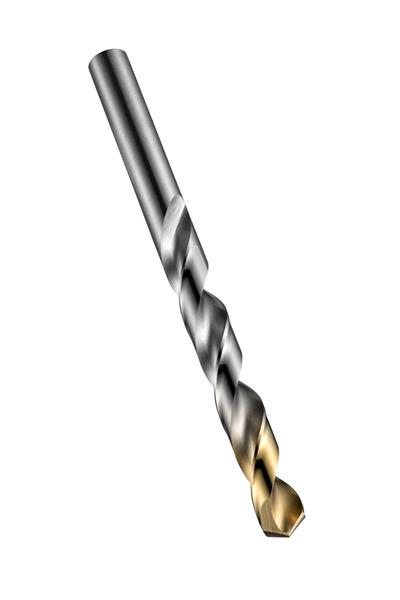

8.20 mm x 117 mm HSS Bright/TiN Finish RH 118 Deg. Split Point Jobber Length Drill

  • Item Code: 5967227
  • Brand: Dormer
  • Unit Size: 1

Description

Suitable for both hand held and machine drilling, the A002 drill from Dormer Pramet has a specially designed 118 degree split point which helps to self-center the drill when drilling by hand, so no wandering over the surface of the workpiece, and you also get a more accurate sized hole with a better finish. The titanium nitride coated tip increases the life of the drill and improves performance when drilling harder materials. Made from premium High Speed steel (HSS), the A002 can be used for drilling many materials including steels, aluminium and stainless steels, with confidence of a good result every time. *Note: 118 degree split point and TiN coated tip not available below 2mm.

ORDER IN MULTIPLES of 10

Tech Specs

Back To Top
Shank Style Cylindrical shank
Material High Speed Steel
Overall Length Metric 117 mm
Brand Dormer
Decimal Size 0.3228"
Metric Size 8.20 mm
Cutting Direction Right
Flute Type Standard Spiral
Point Angle 118 Deg.
Coating/Finish Bright/TiN
Overall Length Inches 4.6063"
