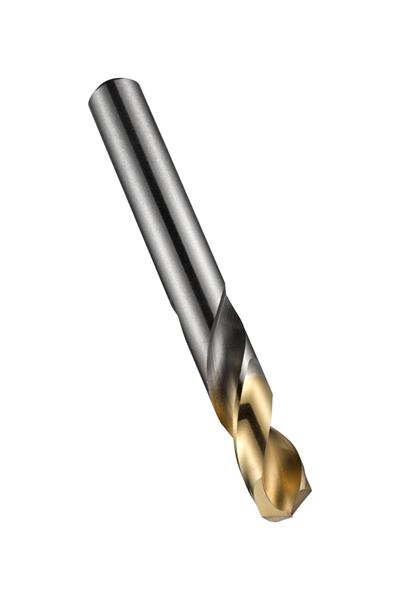

11.3 mm (0.4449) HSS TiN Finish Tip 135 Deg. Split Point Screw Machine Drill

  • Item Code: 5967256
  • Brand: Dormer
  • Unit Size: 1

Description

A022 stub drills are very versatile and are suitable for a wide variety of hand held and machine applications. They are manufactured from premium High Speed Steel and can be used for drilling a number of different materials including steels, stainless steels and aluminium. With a titanium nitride coating, you get better performance when drilling harder materials and a longer tool life. The specially designed 135 degree split point is a great aid to self-centering when drilling by hand ? so no more wandering all over the surface of the workpiece ? and you also get a more accurate hole with a better quality of finish. *Note: split point and TiN coated tip not available below 2mm.

ORDER IN MULTIPLES of 5

Tech Specs

Back To Top
Decimal Size 0.4449"
Flute Type Standard Spiral
Point Angle 135 Deg.
Brand Dormer
Coating/Finish Bright/TiN
Metric Size 11.30 mm
Overall Length Inches 3.7402"
Shank Style Cylindrical shank
Overall Length Metric 95 mm
Cutting Direction Right
Material High Speed Steel
