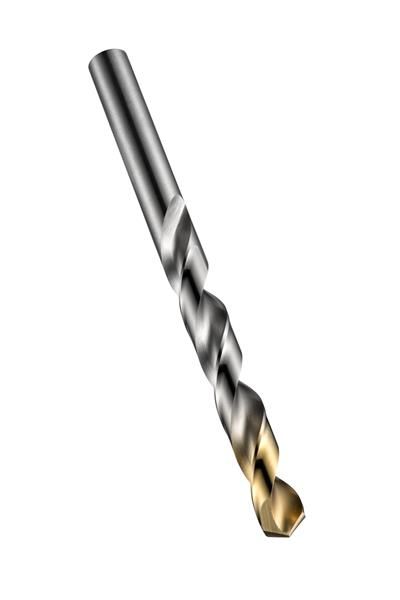

14.75 mm x 169 mm HSS Bright/TiN Finish RH 118 Deg. Split Point Jobber Length Drill

  • Item Code: 5967380
  • Brand: Dormer
  • Unit Size: 1

Description

Suitable for both hand held and machine drilling, the A002 drill from Dormer Pramet has a specially designed 118 degree split point which helps to self-center the drill when drilling by hand, so no wandering over the surface of the workpiece, and you also get a more accurate sized hole with a better finish. The titanium nitride coated tip increases the life of the drill and improves performance when drilling harder materials. Made from premium High Speed steel (HSS), the A002 can be used for drilling many materials including steels, aluminium and stainless steels, with confidence of a good result every time. *Note: 118 degree split point and TiN coated tip not available below 2mm.

Tech Specs

Back To Top
Metric Size 14.75 mm
Point Angle 118 Deg.
Coating/Finish Bright/TiN
Cutting Direction Right
Decimal Size 0.5807"
Flute Type Standard Spiral
Overall Length Inches 6.6535"
Material High Speed Steel
Overall Length Metric 169 mm
Shank Style Cylindrical shank
Brand Dormer
