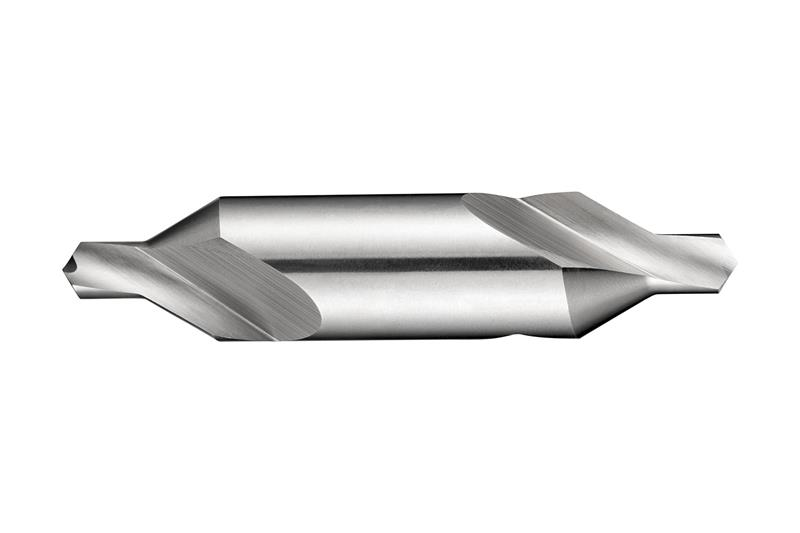

0.025 in. Cobalt 60 Deg. Included Angle Combination Drill and Countersink (Center Drill)
- Item Code: 5969071
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, size 00 with 0.0250" drill diameter, a body diameter of 1/8" and an overall length of 1.1/8", according to ANSI standard to produce form A centre holes, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Metric Diameter | 0.64 mm |
|---|---|
| Cutting Direction | Right |
| Coating/Finish | Bright |
| Decimal Diameter | 0.0250" |
| Shank Style | Cylindrical shank |
| Overall Length Decimal | 1.1250" |
| Brand | Dormer |
| Material | Cobalt |
| Overall Length Metric | 28.58 mm |
| Point Angle | 118 Deg. |
| Overall Length Fractional | 1-1/8" |
