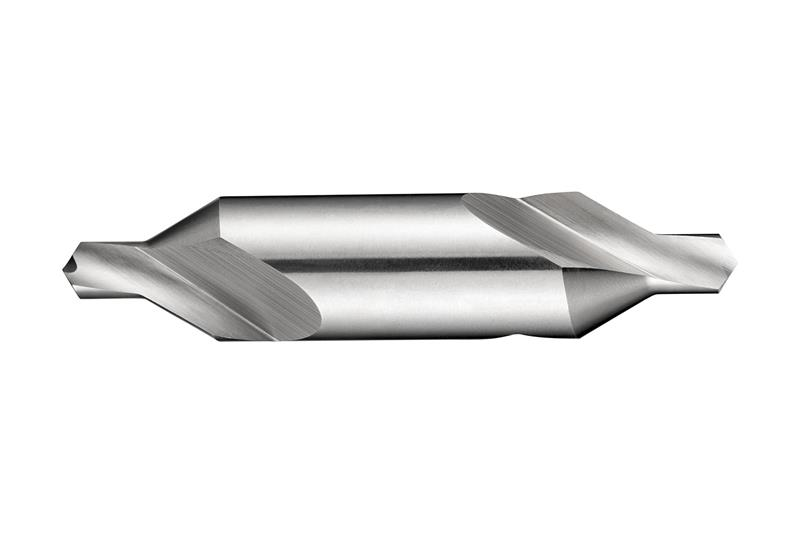

3/64 in. Cobalt 60 Deg. Included Angle Combination Drill and Countersink (Center Drill)
- Item Code: 5969075
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, size 1 with 3/64" drill diameter, a body diameter of 1/8" and an overall length of 1.1/4", according to ANSI standard to produce form A centre holes, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Metric Diameter | 1.19 mm |
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Overall Length Fractional | 1-1/4" |
| Decimal Diameter | 0.0469" |
| Cutting Direction | Right |
| Fractional Diameter | 3/64" |
| Overall Length Decimal | 1.2500" |
| Point Angle | 118 Deg. |
| Overall Length Metric | 31.75 mm |
| Material | Cobalt |
