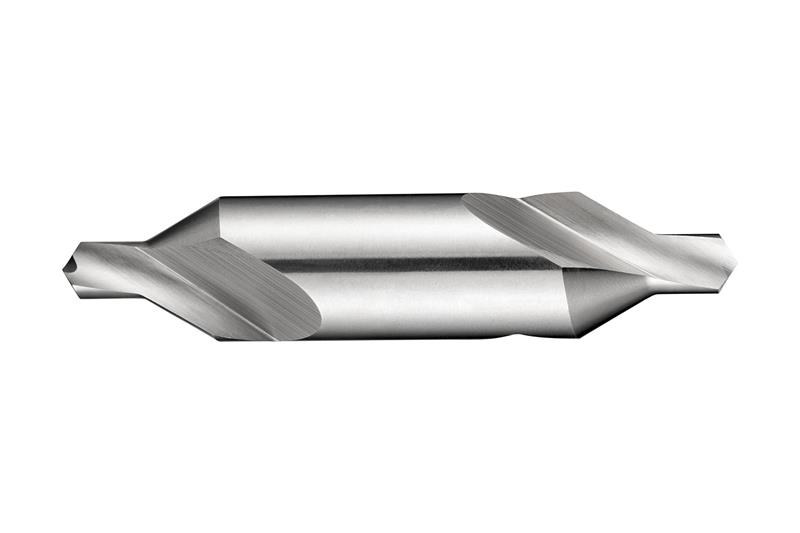

7/64 in. Cobalt 60 Deg. Included Angle Combination Drill and Countersink (Center Drill)
- Item Code: 5969085
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, size 3 with 7/64" drill diameter, a body diameter of 1/4" and an overall length of 2", according to ANSI standard to produce form A centre holes, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Shank Style | Cylindrical shank |
|---|---|
| Coating/Finish | Bright |
| Decimal Diameter | 0.1094" |
| Overall Length Decimal | 2.0000" |
| Brand | Dormer |
| Metric Diameter | 2.78 mm |
| Overall Length Fractional | 2" |
| Material | Cobalt |
| Cutting Direction | Right |
| Fractional Diameter | 7/64" |
| Overall Length Metric | 50.80 mm |
| Point Angle | 118 Deg. |
