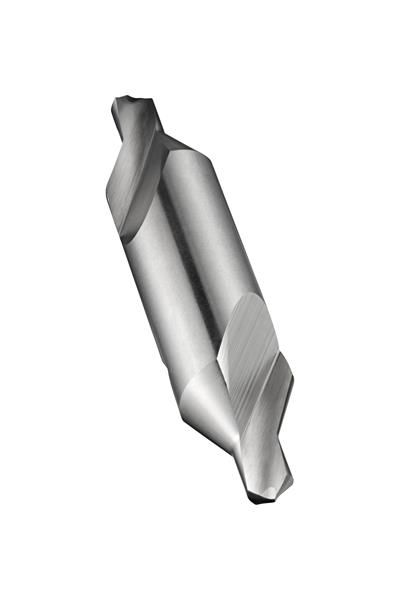

7/32 in. Cobalt 60 Deg. Included Angle Combination Drill and Countersink (Center Drill)
- Item Code: 5969104
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, size 6 with 7/32" drill diameter, a body diameter of 1/2" and an overall length of 3", according to ANSI standard to produce form A centre holes, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Metric Diameter | 5.56 mm |
|---|---|
| Decimal Diameter | 0.2188" |
| Overall Length Fractional | 3" |
| Shank Style | Cylindrical shank |
| Cutting Direction | Right |
| Material | Cobalt |
| Overall Length Decimal | 3.0000" |
| Overall Length Metric | 76.20 mm |
| Point Angle | 118 Deg. |
| Brand | Dormer |
| Fractional Diameter | 7/32" |
| Coating/Finish | Bright |
