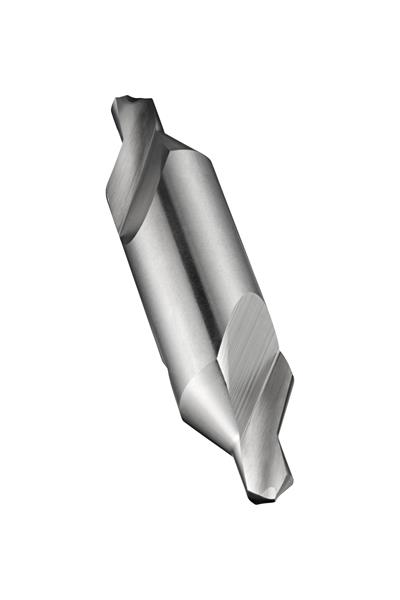

3/64 IN X 1/8 in. HSS Bright Finish 120 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 5969157
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, size BS1 with 3/64" drill diameter, a body diameter of 1/8" and an overall length of 1.1/2", according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Decimal Diameter | 0.0469" |
|---|---|
| Fractional Diameter | 3/64" |
| Point Angle | 120 Deg. |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Overall Length Fractional | 1-1/2" |
| Metric Diameter | 1.19 mm |
| Overall Length Metric | 38.10 mm |
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Material | High Speed Steel |
| Overall Length Decimal | 1.5000" |
