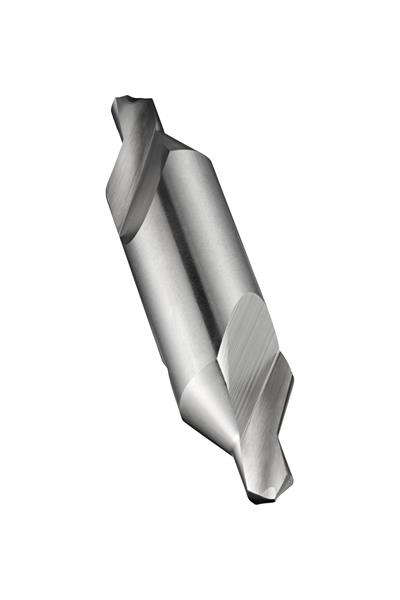

1/16 X 3/16 in. HSS Bright Finish 120 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 5969160
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, size BS2 with 1/16" drill diameter, a body diameter of 3/16" and an overall length of 1.3/4", according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Overall Length Metric | 44.45 mm |
|---|---|
| Decimal Diameter | 0.0625" |
| Material | High Speed Steel |
| Point Angle | 120 Deg. |
| Cutting Direction | Right |
| Fractional Diameter | 1/16" |
| Metric Diameter | 1.59 mm |
| Coating/Finish | Bright |
| Overall Length Decimal | 1.7500" |
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Overall Length Fractional | 1-3/4" |
