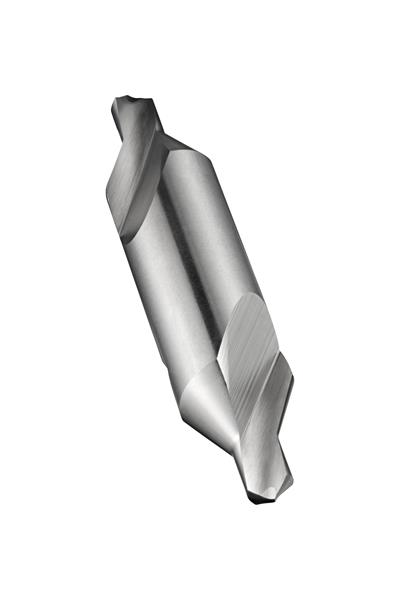

1/8 X 5/16 in. HSS Bright Finish 120 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 5969166
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, size BS4 with 1/8" drill diameter, a body diameter of 5/16" and an overall length of 2.1/4", according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Decimal Diameter | 0.1250" |
|---|---|
| Material | High Speed Steel |
| Metric Diameter | 3.18 mm |
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Overall Length Metric | 57.15 mm |
| Fractional Diameter | 1/8" |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Overall Length Fractional | 2-1/4" |
| Overall Length Decimal | 2.2500" |
| Point Angle | 120 Deg. |
