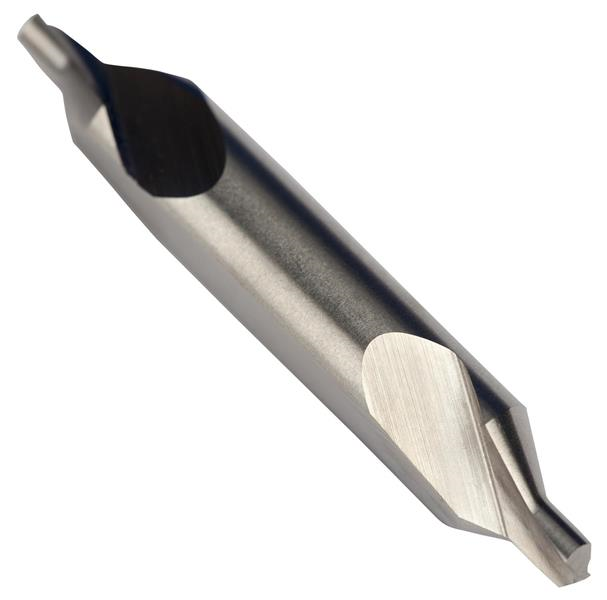

7/32 INX1/2 in. HSS Bright Finish 120 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 5969171
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, size BS5A with 7/32" drill diameter, a body diameter of 1/2" and an overall length of 2.3/4", according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Fractional Diameter | 7/32" |
| Shank Style | Cylindrical shank |
| Decimal Diameter | 0.2188" |
| Material | High Speed Steel |
| Metric Diameter | 5.56 mm |
| Overall Length Decimal | 2.7500" |
| Brand | Dormer |
| Overall Length Fractional | 2-3/4" |
| Point Angle | 120 Deg. |
| Coating/Finish | Bright |
| Overall Length Metric | 69.85 mm |
