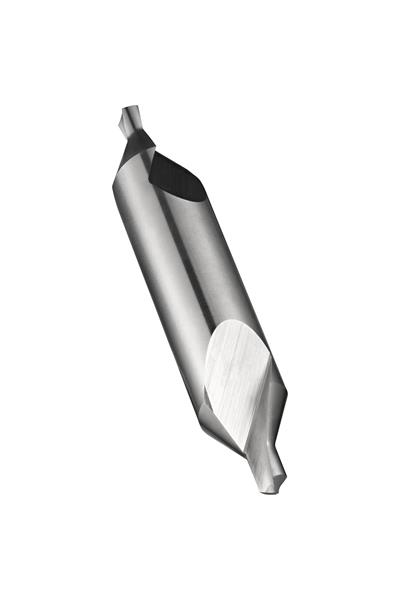

6.00 mm x 40 HSS Bright Finish 122 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 5969240
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, 6.00mm drill diameter, a body diameter of 18.00mm and an overall length of 90mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Overall Length Metric | 90.00 mm |
|---|---|
| Material | High Speed Steel |
| Overall Length Decimal | 3.5433" |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Point Angle | 122 Deg. |
| Shank Style | Cylindrical shank |
| Metric Diameter | 6.00 mm |
| Brand | Dormer |
| Decimal Diameter | 0.2362" |
