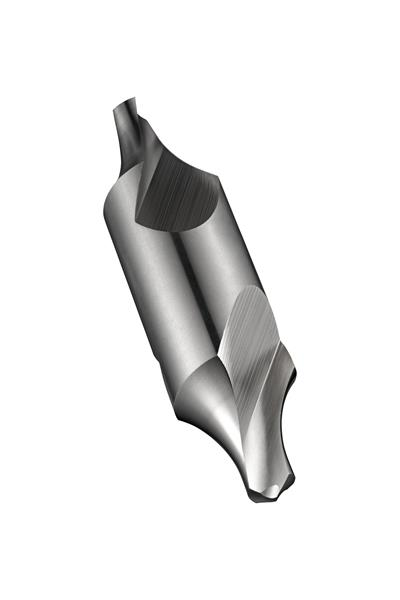

1.25 mm x 31 HSS Bright Finish 118 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 5969337
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. curved conical form, double ended and cylindrical body, 1.25mm drill diameter, a body diameter of 3.15mm and an overall length of 31mm, according to DIN 333R standard to produce standardized centre holes according DIN 332 part 1 form R, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Point Angle | 118 Deg. |
|---|---|
| Decimal Diameter | 0.0492" |
| Metric Diameter | 1.25 mm |
| Overall Length Decimal | 1.2205" |
| Material | High Speed Steel |
| Cutting Direction | Right |
| Brand | Dormer |
| Coating/Finish | Bright |
| Shank Style | Cylindrical shank |
| Overall Length Metric | 31.00 mm |
