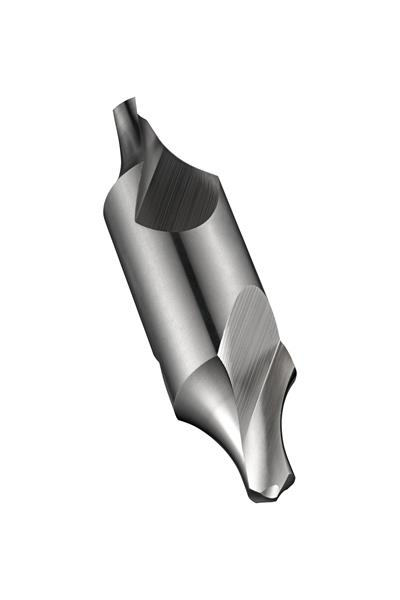

3.15 mm x 50 HSS Bright Finish 118 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 5969373
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. curved conical form, double ended and cylindrical body, 3.15mm drill diameter, a body diameter of 8.00mm and an overall length of 50mm, according to DIN 333R standard to produce standardized centre holes according DIN 332 part 1 form R, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Overall Length Metric | 50.00 mm |
|---|---|
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Material | High Speed Steel |
| Brand | Dormer |
| Overall Length Decimal | 1.9685" |
| Point Angle | 118 Deg. |
| Decimal Diameter | 0.1240" |
| Metric Diameter | 3.15 mm |
| Shank Style | Cylindrical shank |
