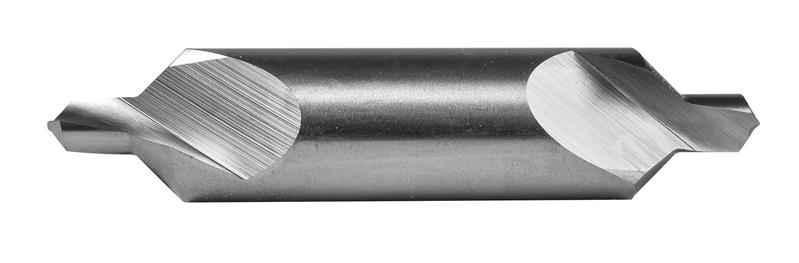

5.00 mm x 63 HSS Bright Finish 118 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 5969381
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. curved conical form, double ended and cylindrical body, 5.00mm drill diameter, a body diameter of 12.50mm and an overall length of 63mm, according to DIN 333R standard to produce standardized centre holes according DIN 332 part 1 form R, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Decimal Diameter | 0.1969" |
| Coating/Finish | Bright |
| Material | High Speed Steel |
| Shank Style | Cylindrical shank |
| Overall Length Decimal | 2.4803" |
| Overall Length Metric | 63.00 mm |
| Metric Diameter | 5.00 mm |
| Cutting Direction | Right |
| Point Angle | 118 Deg. |
