#5 HSS Bright Finish 82 Deg. Included Angle Combination Drill and Countersink
- Item Code: 5969420
- Brand: Dormer
- Unit Size: 1
Description

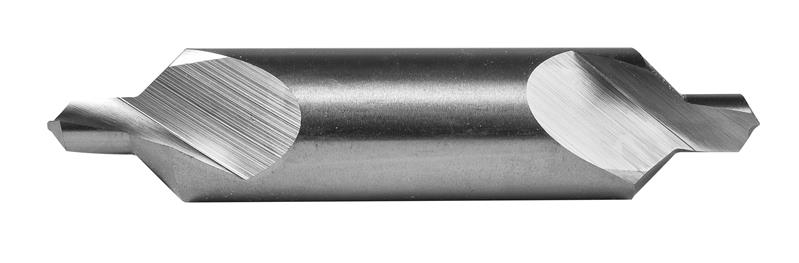

Centre drill (combined drill and countersink) with 82 deg. straight conical form, double ended and cylindrical body, size 5 with 3/16" drill diameter, a body diameter of 7/16" and an overall length of 2.3/4", according to ANSI standard to produce form A centre holes or starting pilot and conical seat for US standard countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Overall Length Fractional | 2-3/4" |
|---|---|
| Point Angle | 120 Deg. |
| Cutting Direction | Right |
| Decimal Diameter | 0.1875" |
| Coating/Finish | Bright |
| Overall Length Decimal | 2.7500" |
| Shank Style | Cylindrical shank |
| Material | High Speed Steel |
| Brand | Dormer |
| Metric Diameter | 4.76 mm |
| Overall Length Metric | 69.85 mm |
