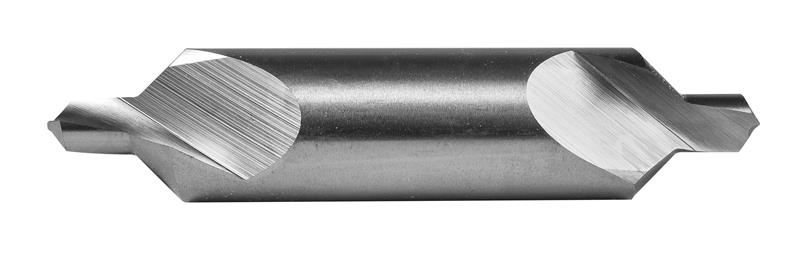

#7 HSS Bright Finish 82 Deg. Included Angle Combination Drill and Countersink
- Item Code: 5969423
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 82 deg. straight conical form, double ended and cylindrical body, size 7 with 1/4" drill diameter, a body diameter of 5/8" and an overall length of 3.1/4", according to ANSI standard to produce form A centre holes or starting pilot and conical seat for US standard countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Point Angle | 120 Deg. |
| Cutting Direction | Right |
| Material | High Speed Steel |
| Decimal Diameter | 0.2500" |
| Overall Length Fractional | 3-1/4" |
| Shank Style | Cylindrical shank |
| Metric Diameter | 6.35 mm |
| Overall Length Metric | 82.55 mm |
| Brand | Dormer |
| Overall Length Decimal | 3.2500" |
